ACE Shipment Details Page (ACE Manifest)

🔖 This article is part of the BorderConnect Software User Guide

ACE Shipment Details Page

The central hub for managing individual ACE shipment data, commodities, and parties.

Type: Data Entry Country: United States (CBP)

Overview

The ACE Shipment Details Page is the main workspace for a specific shipment within the BorderConnect ACE Manifest software. It provides a complete overview of all cargo information, shippers, consignees, and commodities, and serves as the launchpad for transmitting shipment-specific data to CBP.

How to Reach This Page:

• Automatically: Upon clicking 'Save' on the Start New ACE Shipment Page.
• From Search: By clicking 'View' on any result in the ACE Shipment Search Page.
• Navigation Link: By using the 'Back to ACE Shipment' shortcut link available after viewing sub-pages (like commodities).

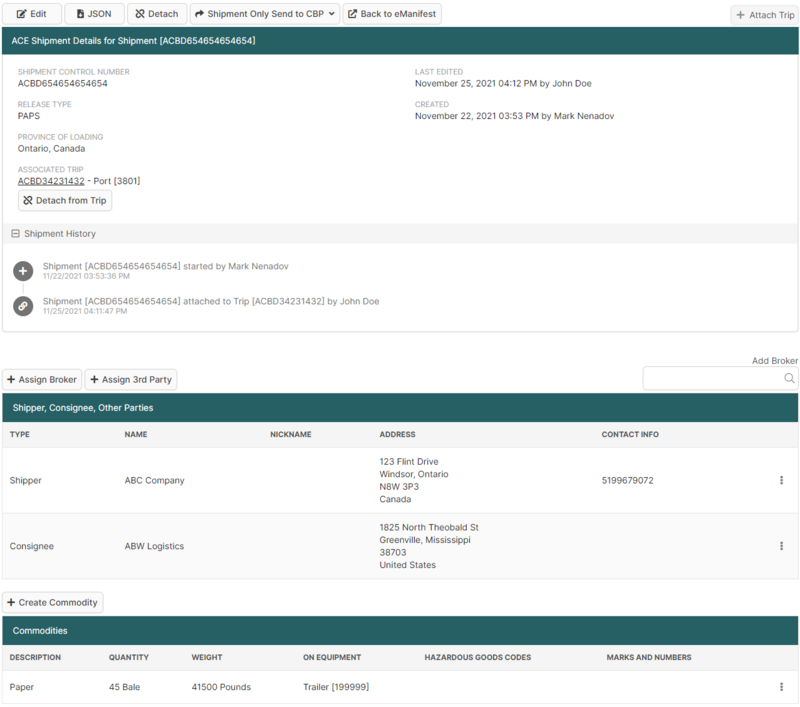

Viewing the ACE Shipment Details page

Main Function Buttons

The ACE Shipment Details page Main Function Buttons bar

Located near the top of the page, these buttons control the shipment's lifecycle and association.

Button	Function
Edit	Opens the Edit ACE Shipment Page to modify core data like the Shipment Control Number (SCN).
Delete	Removes the shipment from BorderConnect. Warning: This does not cancel the shipment with CBP. If the shipment is already on file, transmit a cancellation first!
Detach	Removes the shipment from its current manifest but keeps it in the system as an "Unassociated Shipment" for later use. (Only visible if attached).
Back to ACE eManifest	Returns you to the parent ACE Manifest Details Page.

Shipment Only Send to CBP

This button is for advanced users who need to transmit only this specific shipment data, rather than the entire manifest.

• Send Unassociated Shipment: Transmits the shipment to CBP without linking it to a trip.
• Cancel Shipment Message: Sends a request to CBP to cancel this specific shipment. (If attached to a manifest in CBP's system, this removes it from that manifest).
• Attach Shipment Message: Links this shipment to a manifest in CBP's system (both must already be on file).

Details & History

The Details and History Status Bar

Located directly below the function buttons, this section provides situational awareness.

• Details: Displays the Shipment Control Number (SCN), Shipment Type (e.g., PAPS), Province of Loading, and the Associated Trip Number.
• History: Logs every event for the shipment, including creation time, edits, and CBP responses (Accepted, Rejected, Released).

Shipper, Consignee & Broker

Adding Parties (Empty State)

Parties Assigned (Filled State)

This section manages the entities involved in the movement of goods.

Action	Description
Quick Assign (Shipper/Consignee)	Type a name or address to instantly select a profile already saved in BorderConnect.
Assign (Shipper/Consignee)	Opens a form to manually enter a new name and address. (Use only if the party doesn't exist in your system).
Assign Broker	Optional. Designates the Customs Broker. Useful for the "Broker Download" feature in ACE, but does not affect entry numbers.
Assign 3rd Party	Optional. Adds a 3rd party entity to the shipment record.
Edit / Remove	Modify the address of an assigned party or remove them from the shipment entirely.

Commodity Section

The Commodity Management Section

Located at the bottom of the page, this section lists all goods contained in the shipment.

Action	Description
Create Commodity	Opens the Add/Edit Commodity Page to enter new goods (description, weight, quantity).
View	Opens the Commodity Details Page to see full specs or add Hazmat details.
Edit	Modify details of an existing commodity line item.
Delete	Remove the commodity line item from the shipment.

📱
